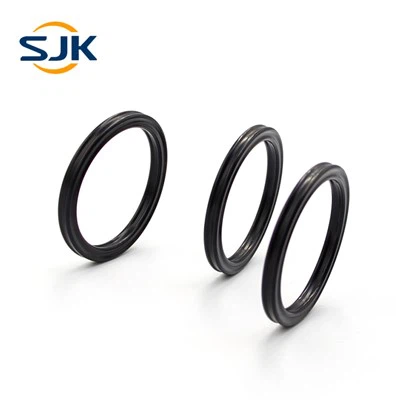

AS568 X Rings Seals
Xim: Dub, liab, xiav, raws li koj xav tau
Xa kev nug
Product Details ofAS568 X Rings Seals
Loj: Standard, customized ua
Xim: Dub, liab, xiav, raws li koj xav tau
AS568 yog X-ntiv nplhaib rau aerospace dimensional qauv luam tawm los ntawm Society of Automotive Engineers (SAE). Nws yog tib yam li AS 568 O-ring specification rooj
| Series | Qhov siab (feem feem) |
Qhov siab (inch) |
Sab hauv txoj kab uas hla (inch) |
Qhov siab (mm) |
Sab hauv txoj kab uas hla (mm) |
| 000 | 1/16 | 0.070 ± .003 | 0.029" ~ 5.239" | 1.78 ± .08 | 0.74 ~ 133.07 |
| 100 | 3/32 | 0.103 ± .003 | 0.049" ~ 9.737" | 2.62 ± .08 | 1.24 ~ 247.32 |
| 200 | 1/8 | 0.139 ± .004 | 0.171" ~ 17.955" | 3.53 ± .10 | 4.34 ~ 456.06 |
| 300 | 3/16 | 0.210 ± .005 | 0.412" ~ 25.940" | 5.33 ± .13 | 10.46 ~ 658.88 |
| 400 | 1/4 | 0.275 ± .006 | 1.350" ~ 25.940" | 6.99 ± .15 | 113.67 ~ 658.88 |
Tsuas yog AS568 X nplhaib ntsaws ruaj ruaj, Jiacheng Tshiab Materail (SJK) tuaj yeem muab cov duab customzied lossis loj X quad rings.
